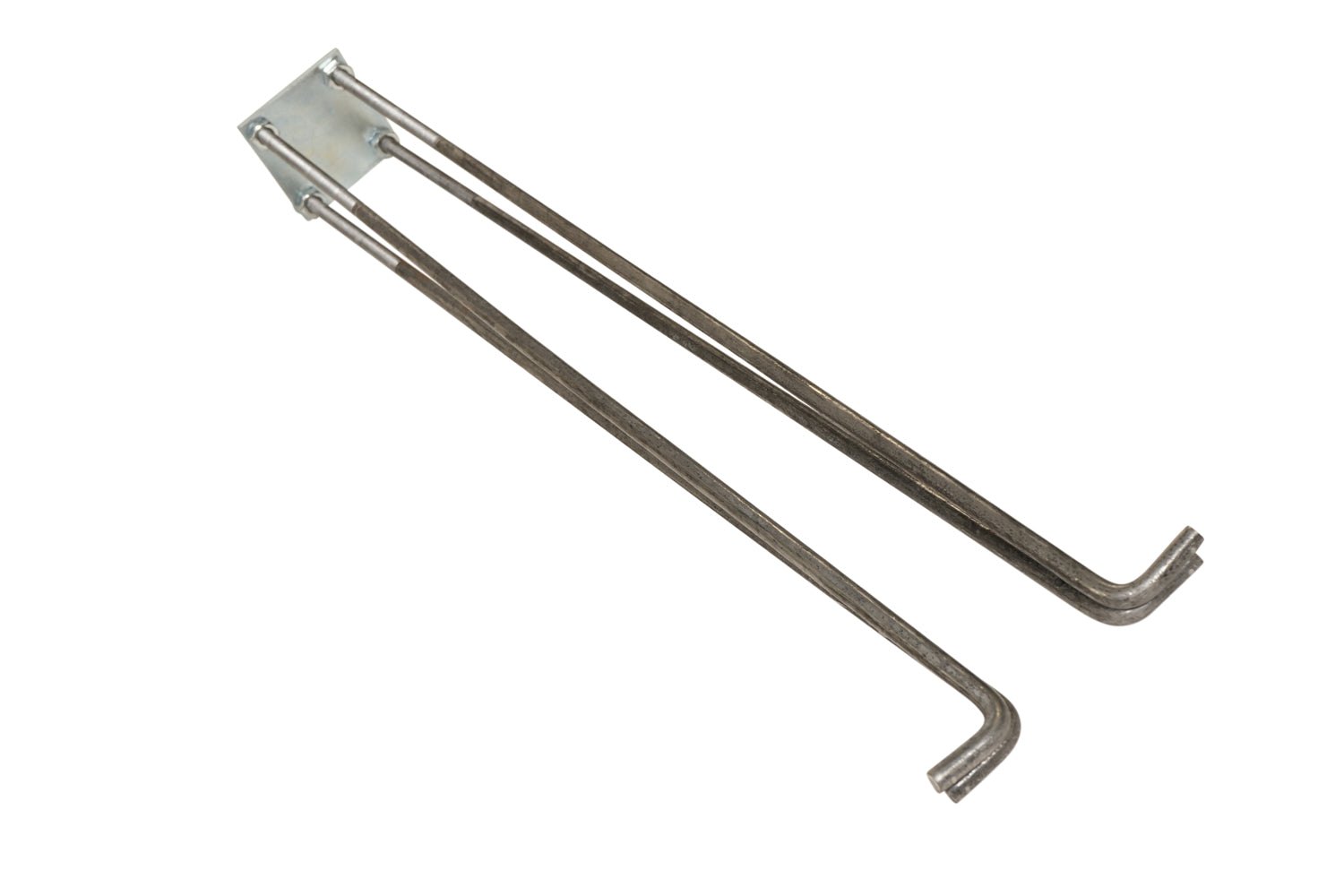

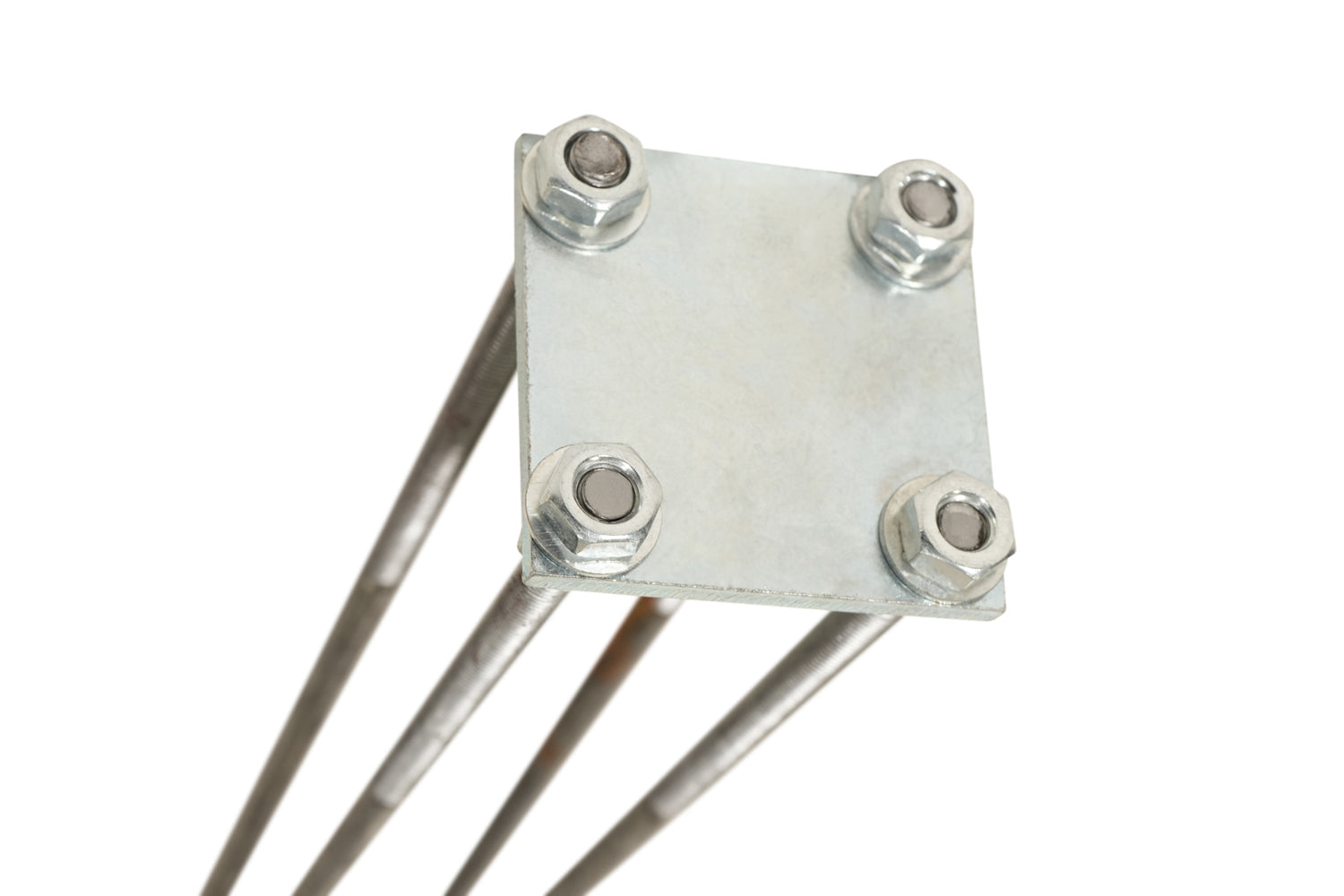

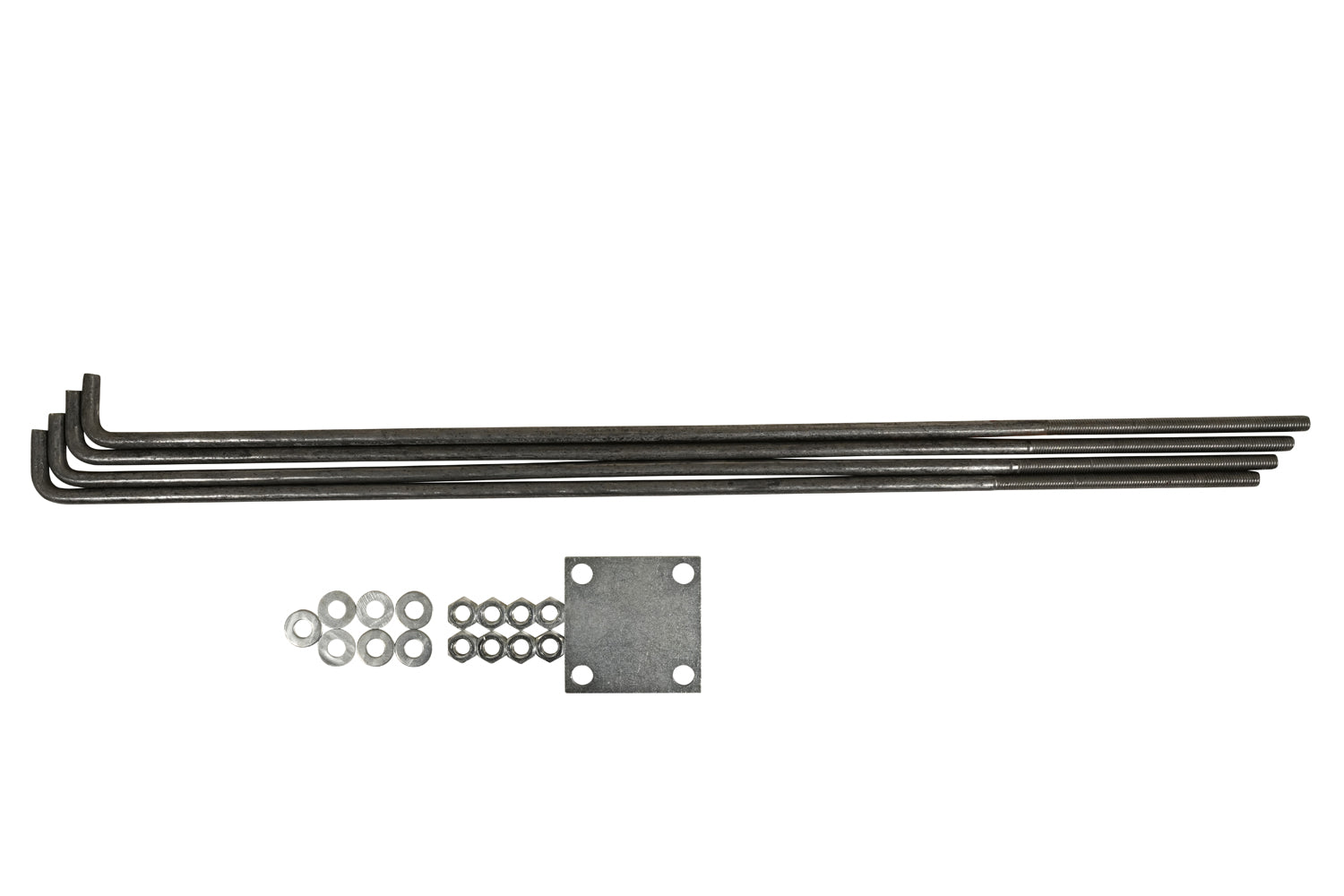

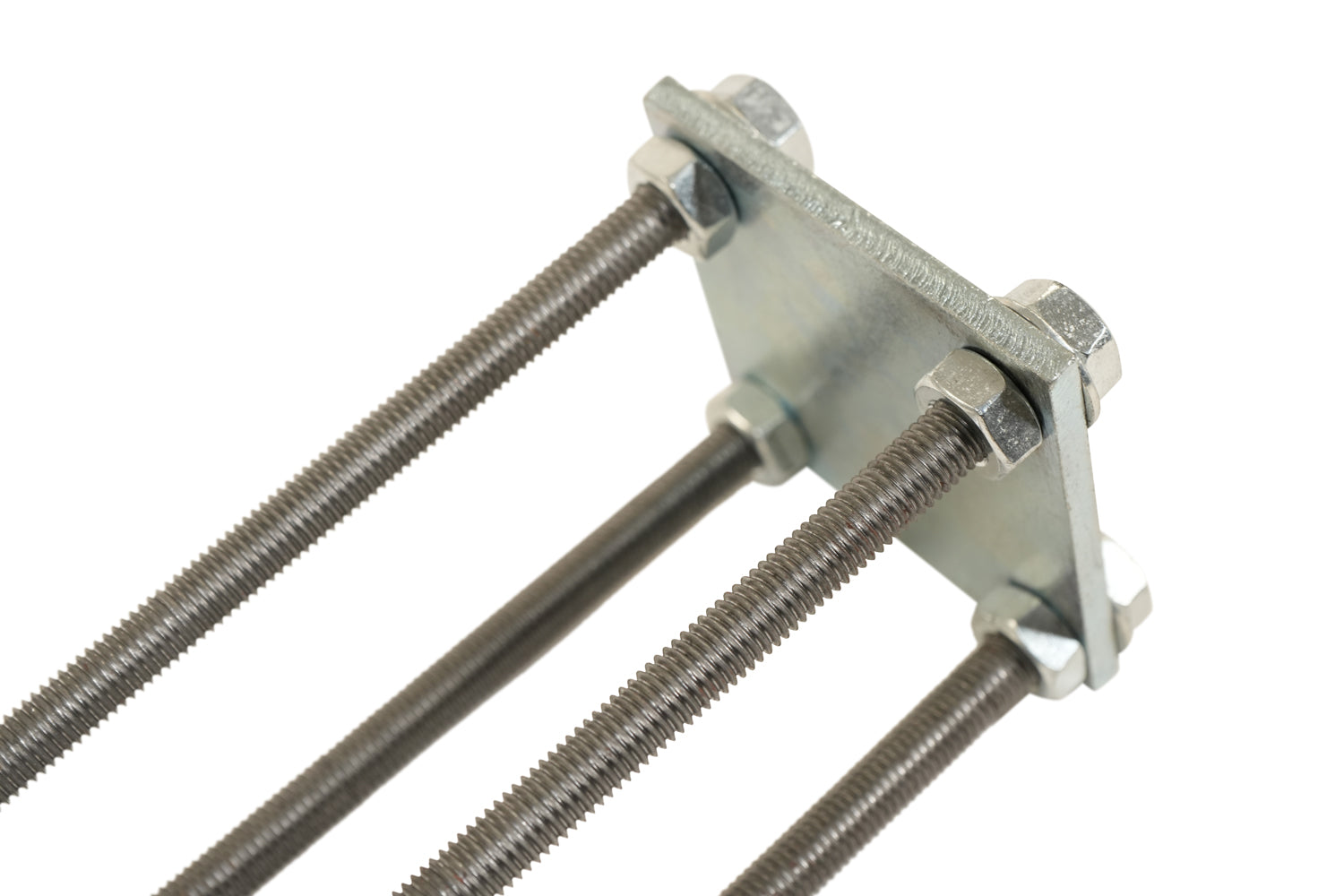

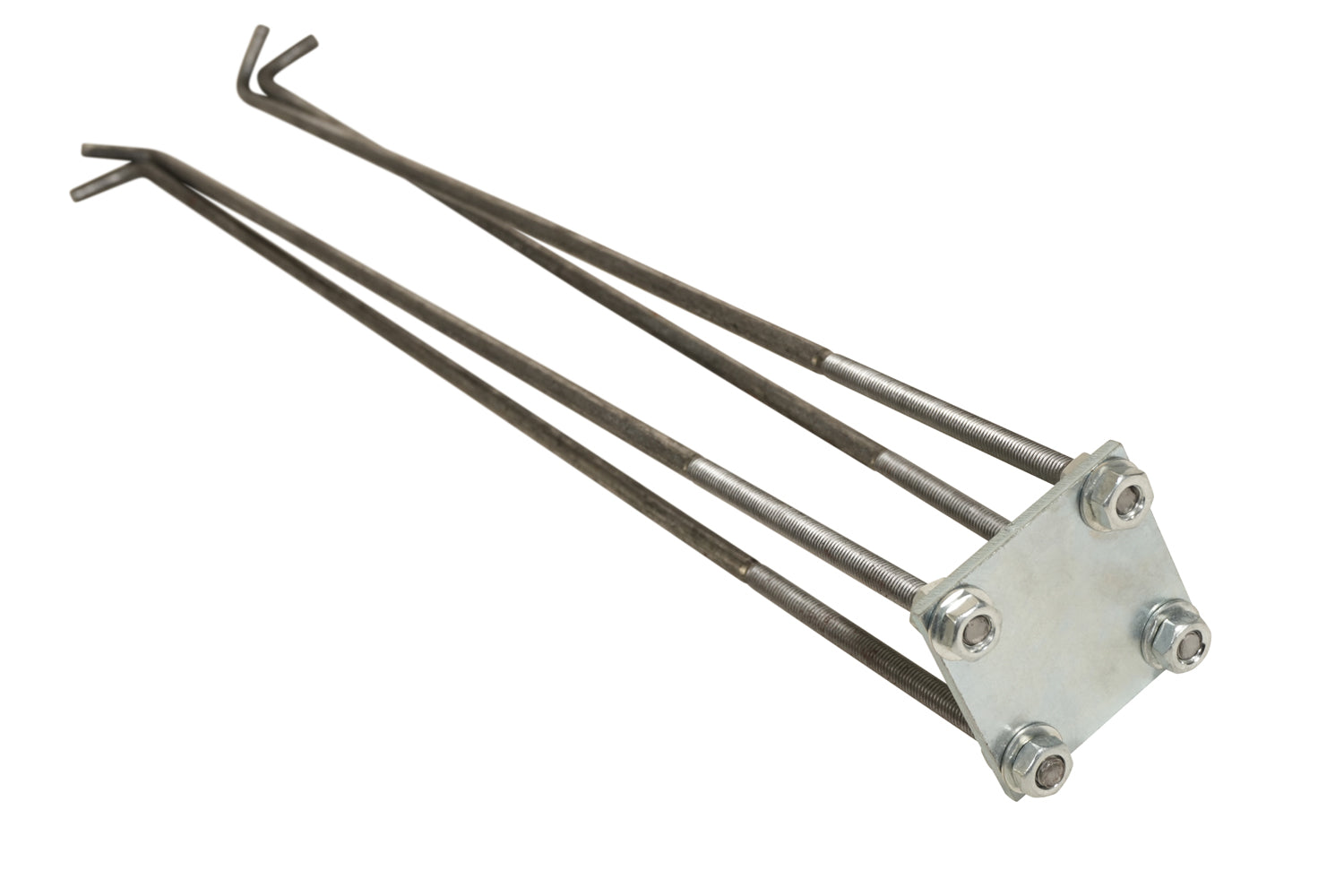

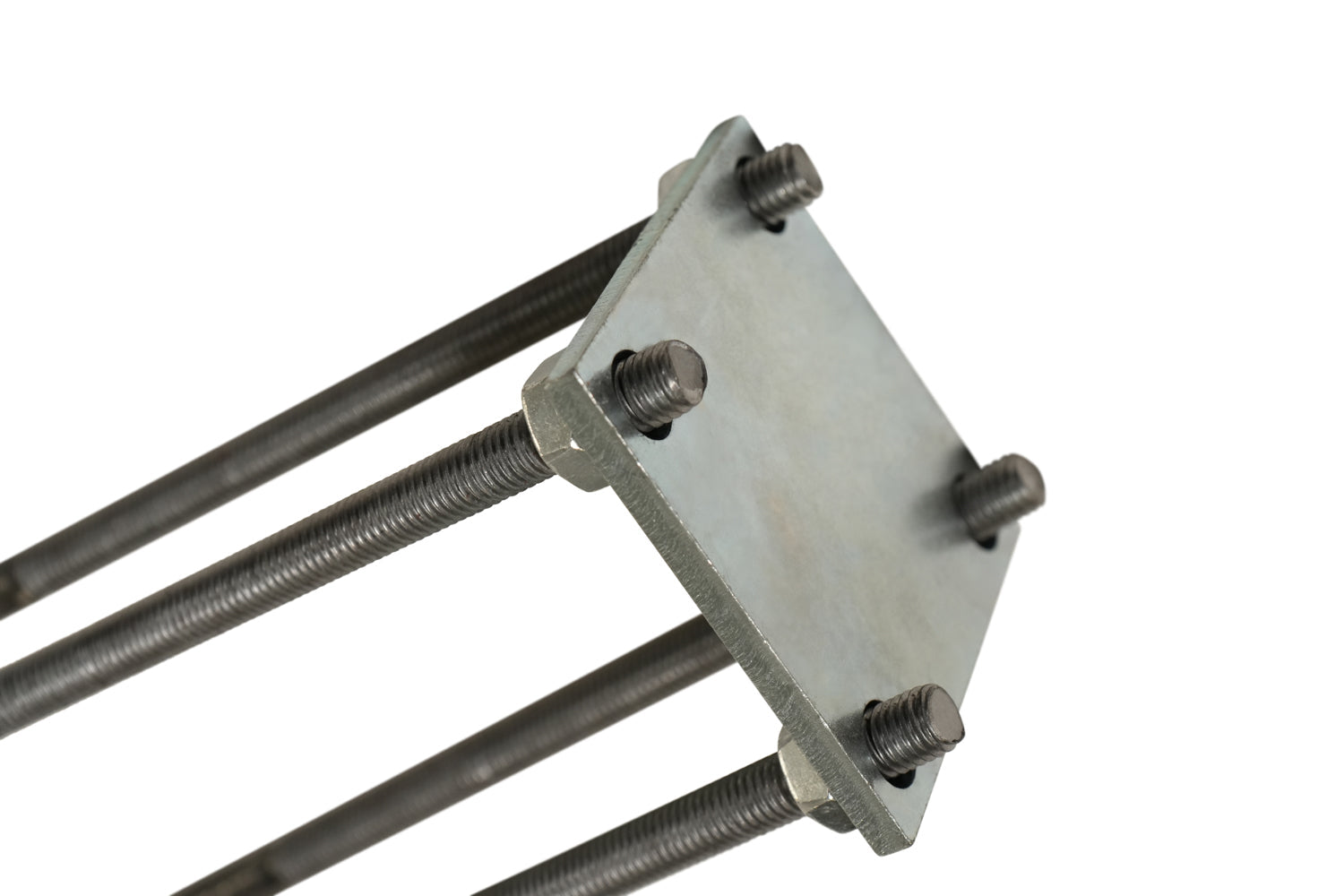

Metal Fence Post Concrete Base Adapters for Composite Fence System
Strengthen your fence installation with our Metal Fence Post Concrete Base Adapters, engineered to provide superior post reinforcement for Slat Solution™ Composite Fence Systems. Designed for concrete installations, these heavy-duty adapters increase post stability, improve structural performance, and provide a secure foundation for long-lasting outdoor durability.
Whether you're installing a new fence, building on a retaining wall, or working with elevated concrete applications, these adapters help minimize post movement while creating a stronger connection between your fence posts and concrete foundation.
Manufactured from heavy-duty powder-coated steel, each adapter is corrosion-resistant and built to withstand harsh outdoor environments for years of reliable performance.
Available Sizes
27.5" Concrete Base Adapter
- Ideal for standard concrete footing installations
- Provides additional embedded support for improved post rigidity
- Excellent choice for most residential fencing projects
47.25" Concrete Base Adapter
- Designed for installations requiring maximum post reinforcement
- Perfect for retaining walls, raised installations, and other demanding applications
- Offers increased embedment depth for enhanced structural stability
Features
- Compatible with Slat Solution™ Composite Fence Systems
- Heavy-duty powder-coated steel construction
- Corrosion-resistant for long-lasting outdoor performance
- Reinforces fence posts for improved strength and stability
- Helps reduce post movement and maintain fence alignment
- Ideal for residential, commercial, and elevated concrete installations
- Available in two lengths to accommodate a wide range of installation requirements
Choose the Concrete Base Adapter that best fits your project to maximize fence stability, improve long-term performance, and create a stronger, more secure foundation for your composite fence system.
| Description | Value |
|---|---|
| Color | |
| Finish | |
| Box Contains | |
| Square ft./Box | |
| Plank Size | |
| Plank Thickness | |
| Slats/Plank | Concrete Base Adapters |
| Slat Size | |
| Material | |
| Application | |
| Installation Type |
Concrete Installation Requirements
The Slat Solution™ Surface-Mounted WPC Fence System is designed for installation on structurally sound reinforced concrete using a surface-mount base plate and expansion anchor system. Depending on site conditions, contractors may choose between direct mounting to existing reinforced concrete or installation into a newly poured concrete footing.
Existing concrete installations utilize the supplied surface-mount base plate and expansion anchors, while new concrete installations may incorporate optional Concrete Base Extension Adapters for additional embedded post support and stability. The appropriate installation method should be determined based on project requirements, concrete conditions, site characteristics, and contractor preference.
Existing Concrete Installation
For installations on existing concrete surfaces, fence posts may be mounted directly to the concrete using the supplied surface-mount base plate and expansion anchors.
Requirements:
- Minimum Concrete Thickness: 12" (1 ft.)
- Minimum Concrete Mounting Area: 12" x 12" per post
- Concrete must be reinforced, level, structurally sound, and free of cracks or deterioration
- Not recommended for pavers, loose masonry, asphalt, or damaged concrete surfaces
Post & Anchor Details:
- Post Size: 3" x 3" Powder-Coated Metal
- Anchor Type: Expansion Anchors
- Anchor Length: 3.5"
- Installation Type: Direct Surface Mount
New Concrete Footing Installation
27.5" Concrete Base Extension
For new fence installations, our Concrete Base Extension Adapters can be embedded directly into freshly poured concrete to provide additional post support and long-term stability. This installation method creates a reinforced connection between the fence post and concrete footing, helping improve overall structural performance.
Ideal for standard residential installations and moderate support requirements.
Typical Footing Size:
- 12" Wide x 30" Deep
- Minimum Concrete Strength: 3,000 PSI
Benefits:
- Provides 27.5" of embedded post support
- Creates a stronger connection between the post and footing
- Helps reduce post movement over time
- Provides additional reinforcement for demanding installations
- Enhances overall post stability and long-term durability
Contractors who choose not to use a Concrete Base Extension Adapter may install posts directly to reinforced concrete. See the Existing Concrete Installation section above for mounting requirements.
47.25" Concrete Base Extension
Provides nearly 4 feet of embedded post support for increased stability in demanding installations.
Typical Footing Size:
- 12" Wide x 48" Deep
- Minimum Concrete Strength: 3,000 PSI
Ideal For:
- New fence installations
- Elevated installations
- Retaining walls up to 4 ft. in height
- Projects requiring maximum post stability
Important Notes
- Concrete Base Extension Adapters are intended for new concrete pours where the adapter can be embedded directly into the footing.
- Existing concrete installations may be mounted directly to concrete using the supplied base plate and expansion anchors when the substrate is adequate for the application.
- Contractors should evaluate site conditions, wind exposure, soil conditions, and local building requirements when determining the appropriate installation method.
- All installations should comply with applicable local building codes and project-specific requirements.
- The use of Concrete Base Extension Adapters is optional and may provide additional post support and stability in certain applications.
