Modern WPC Slat Panel Privacy Gates – Black

Upgrade your exterior with our Modern WPC Slat Panel Privacy Gates, designed to complement contemporary fencing systems while providing privacy, durability, and secure access. Featuring black WPC composite slat panels paired with a sleek powder-coated black architectural metal frame, these gates deliver a clean, modern monochromatic appearance with the low-maintenance benefits of composite materials.

The gate system is available in two configurations:

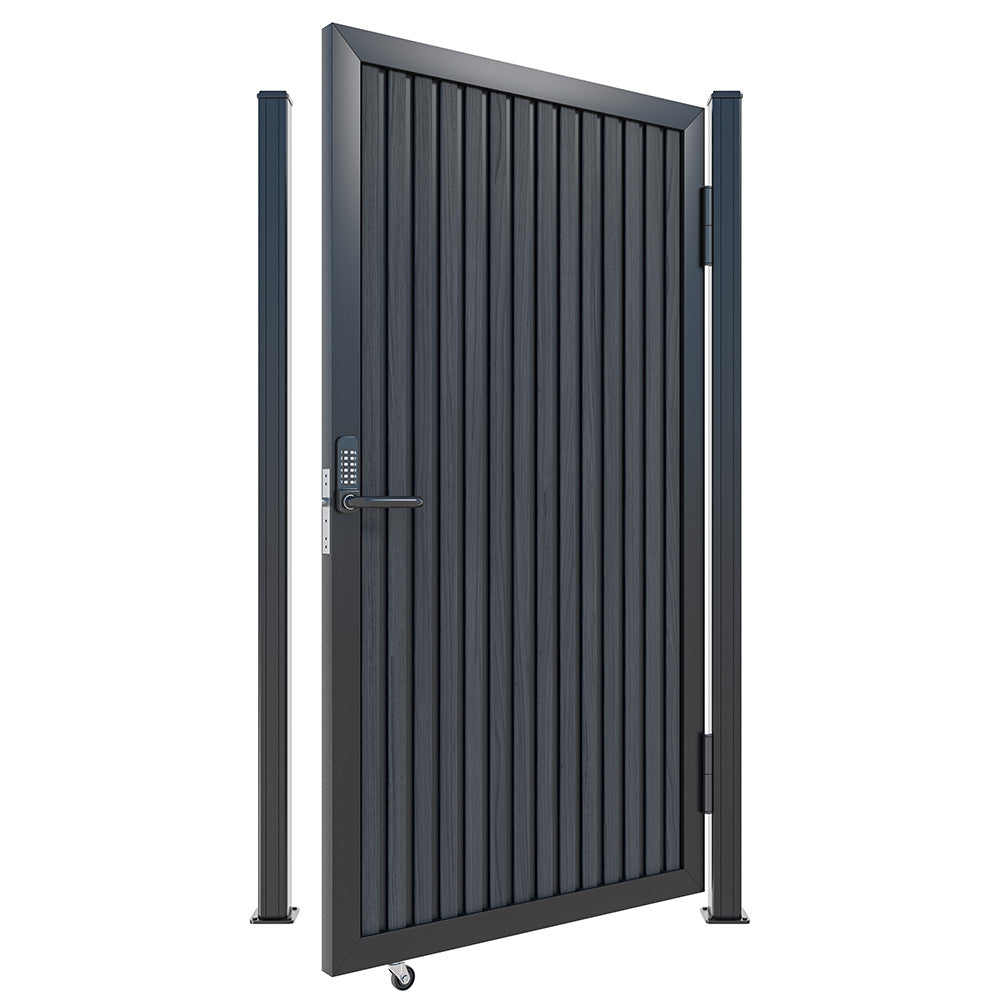

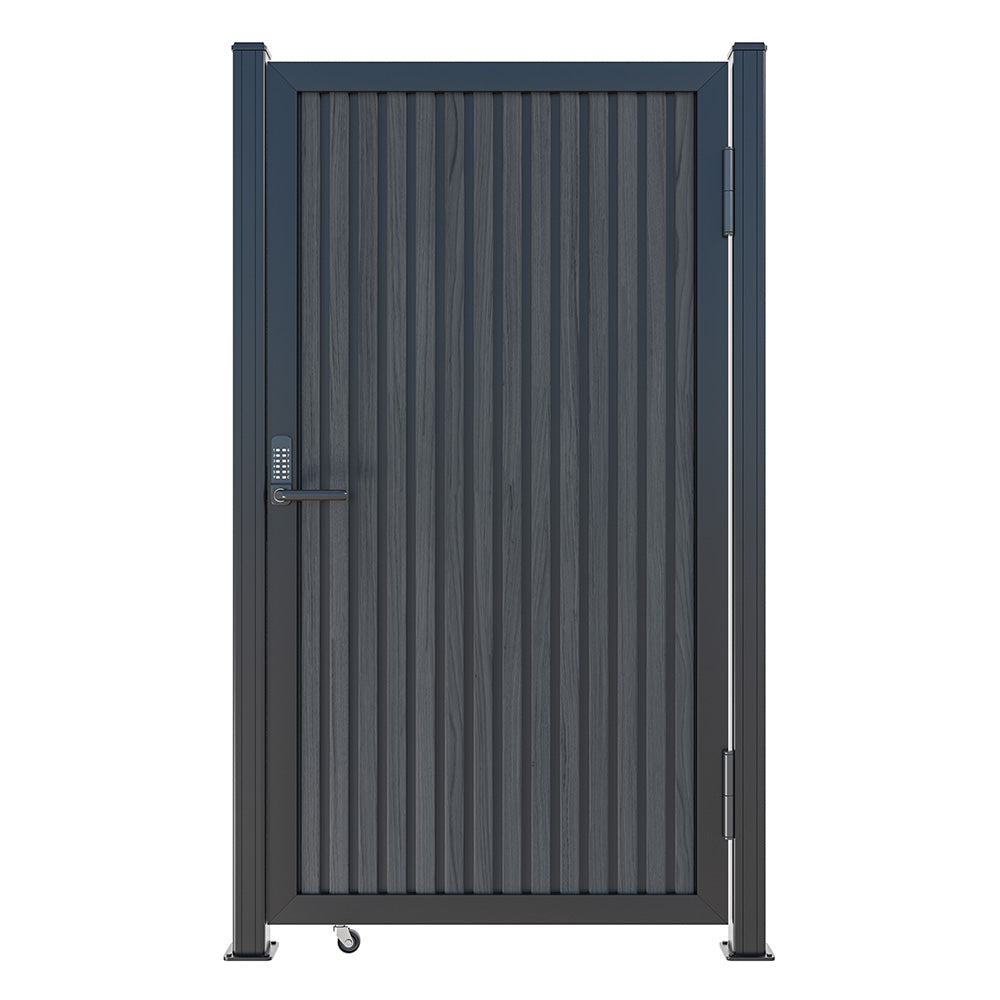

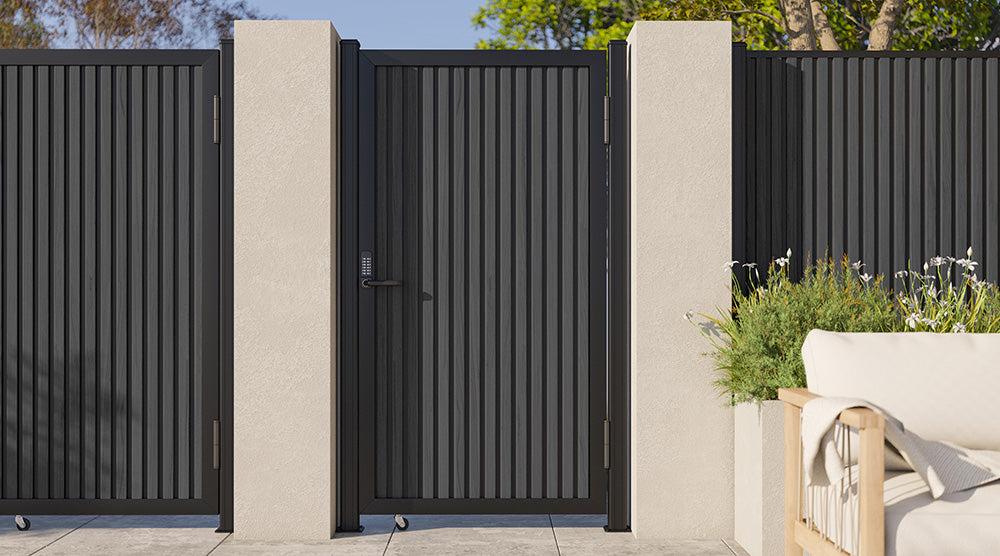

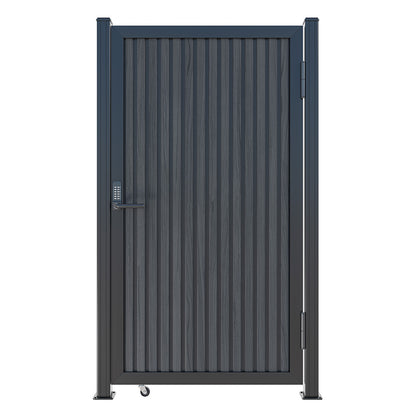

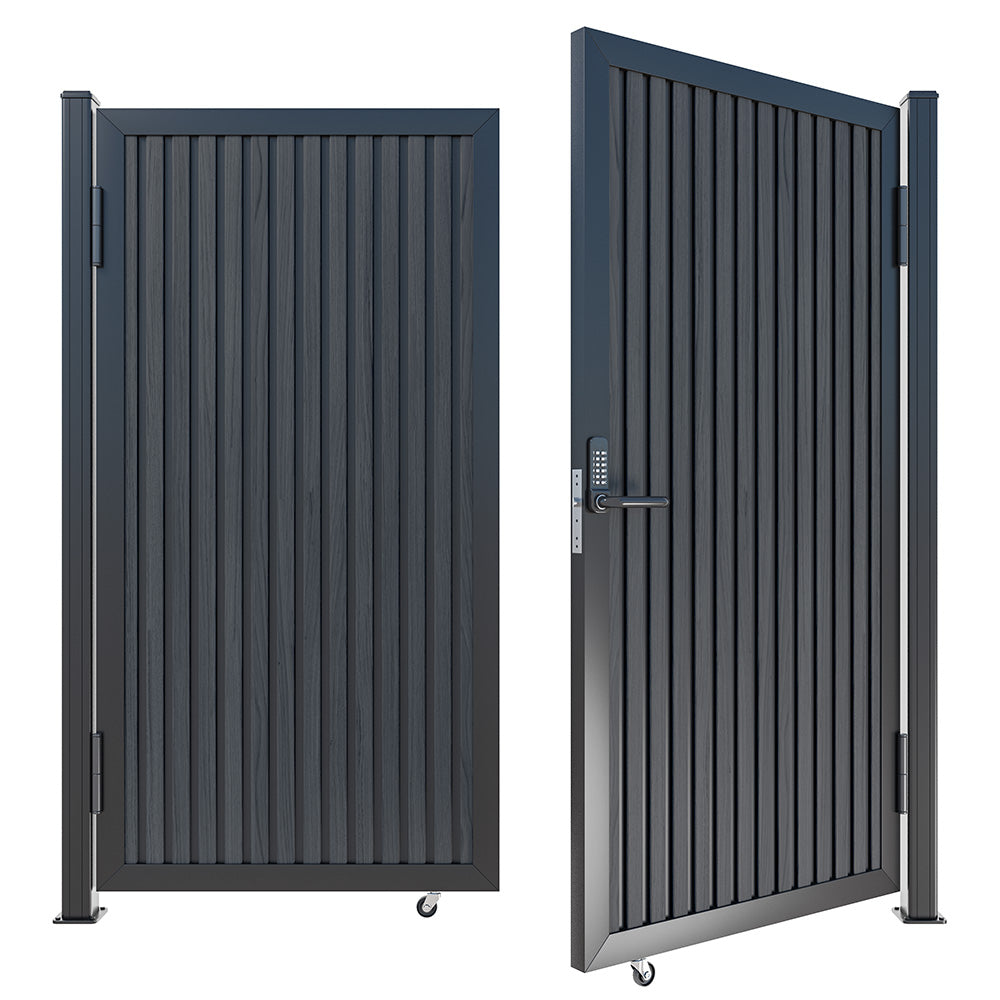

Single Swing Gate – 37" Clear Opening

Provides approximately 37" of clear gate opening, with an overall 45-1/8" post-to-post width and 49-1/8" base plate-to-base plate footprint. Includes a mechanical keypad lock system with mechanical key backup.

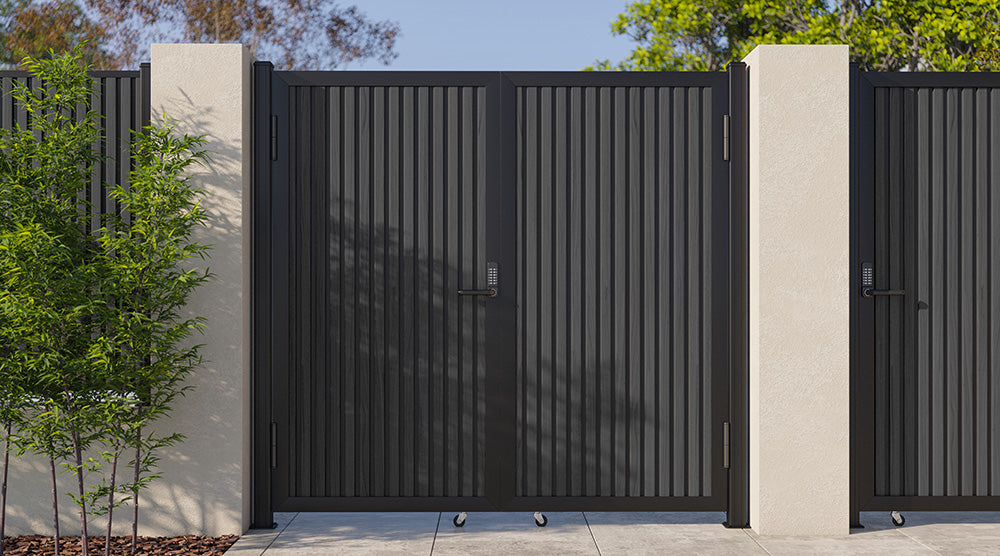

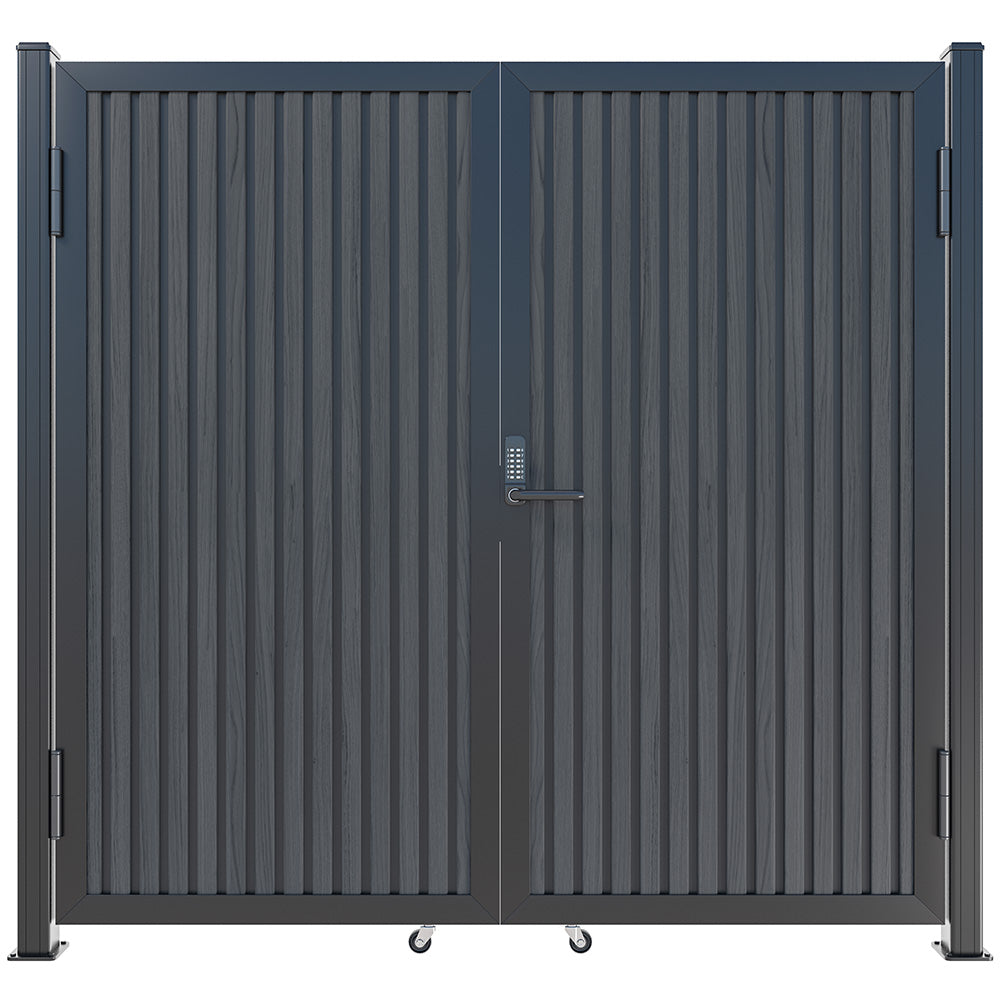

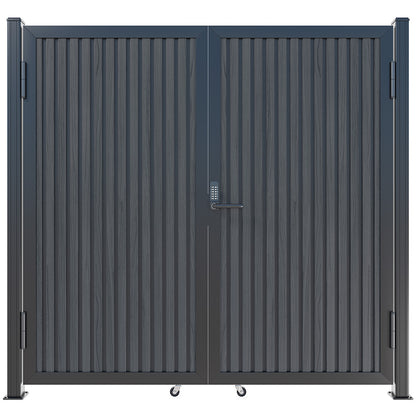

Double Swing Gate – 74" Clear Opening

Provides approximately 74" of total clear gate opening (37" x 2), with an overall 91-1/4" post-to-post width and 95-7/16" base plate-to-base plate footprint. The Double Swing Gate does not include the mechanical keypad lock system.

Both configurations include WPC slat panels that can be installed in either a horizontal or vertical orientation, allowing the gate to coordinate with the layout of your adjoining fencing system.

The gate system ships unassembled and is designed for on-site assembly and installation. The frame and included WPC panels may require cutting during installation to achieve the appropriate finished dimensions.

Modern WPC Slat Panel Privacy Gate Features

• Premium WPC composite slat panel construction
• Black finish
• Powder-coated black architectural metal frame
• Available in Single Swing and Double Swing Gate configurations
• 37" clear opening on Single Swing Gate
• 74" total clear opening on Double Swing Gate
• Horizontal or vertical WPC panel installation
• Mechanical keypad lock system included with Single Swing Gate
• Mechanical key backup on Single Swing Gate lock
• Heavy-duty gate hinges
• Heavy-duty gate caster wheel
• Gate drop rod / cane bolt
• Steel gate posts with base plates
• Fence-to-gate post C-channels for adjoining fence sections
• Concrete sleeve anchors and assembly hardware included
• Weather-resistant exterior construction
• Low-maintenance alternative to traditional wood gates
• Designed to coordinate with matching WPC composite fencing
• Ships unassembled for on-site assembly

Gate Dimensions

Single Swing Gate

Clear Gate Opening: Approximately 37" (940 mm)
Post-to-Post Overall Width: Approximately 45-1/8" (1,146 mm)
Base Plate-to-Base Plate Overall Width: Approximately 49-1/8" (1,248 mm)
Total Height: Approximately 70-7/8" (1,800 mm)

Double Swing Gate

Clear Gate Opening: Approximately 74" (1,880 mm) – 37" x 2
Post-to-Post Overall Width: Approximately 91-1/4" (2,318 mm)
Base Plate-to-Base Plate Overall Width: Approximately 95-7/16" (2,424 mm)
Total Height: Approximately 70-7/8" (1,800 mm)

All measurements are approximate. Verify all dimensions prior to installation and allow for installation tolerances and hardware clearances.

Included WPC Panels

The Single Swing Gate kit includes 6 WPC composite panels measuring 78-1/2" x 6".

The Double Swing Gate kit includes 12 WPC composite panels measuring 78-1/2" x 6", with 6 panels for each gate leaf.

Panels can be installed in either a vertical or horizontal orientation.

The panels are supplied oversized and must be cut down to the required dimensions during installation.

For the Double Swing Gate, the gate leaf without the lock can also be trimmed down to size when a narrower finished opening is required.

Important Cutting Disclaimer

Measure carefully before making any cuts.

Any modification or cutting of the WPC panels, gate frame, or other trimmable components is performed at the customer's own risk. Products that have been cut, trimmed, drilled, modified, or otherwise altered incorrectly do not qualify for a refund or exchange.

If a component is cut too short or otherwise damaged during modification or installation, replacement parts may need to be purchased separately.

Frame & Construction

Frame Material: Powder-Coated Architectural Metal
Gate Posts: Heavy-Duty Steel Posts with Base Plates
Gate Post Size: Approximately 3-1/8" x 3-1/8"
Gate Post Height: Approximately 70-5/8"
Base Plate Size: Approximately 5-1/8" wide x 1/4" thick
Panel Material: WPC Composite Slat Panels
Panel Orientation: Horizontal or Vertical
Color: Black
Installation: Surface-Mounted Gate Posts
Assembly: On-Site Assembly Required

Fence-to-gate post C-channels are included to provide a connection point for adjoining WPC fence sections.

Hardware & Security

The Single Swing Gate includes a mechanical keypad gate lock system designed to provide convenient keyless entry without requiring electrical wiring or a power source. Mechanical key backup provides an additional method of entry.

The Double Swing Gate does not include the mechanical keypad lock system.

Both configurations include the primary structural and installation hardware required for assembly, including heavy-duty hinges, gate support hardware, frame connectors, post mounting hardware, and related fasteners.

Installation Details

Assembly Required: Yes
Ships Pre-Assembled: No
Installation Type: On-Site Assembly
Panel Cutting Required: Yes
Horizontal or Vertical Panels: Yes
Professional Installation: Recommended

Always verify the finished opening and required dimensions before cutting any panels or gate components. Installation conditions vary by project, and the installer is responsible for confirming measurements, clearances, mounting surfaces, and local building requirements before installation.

For planning purposes, pay particular attention to the difference between the clear gate opening, post-to-post overall width, and base plate-to-base plate overall footprint.

Architectural Privacy with Modern Functionality

Unlike traditional wood gates that may require regular staining, sealing, or repainting, WPC composite provides a modern architectural appearance with reduced maintenance requirements.

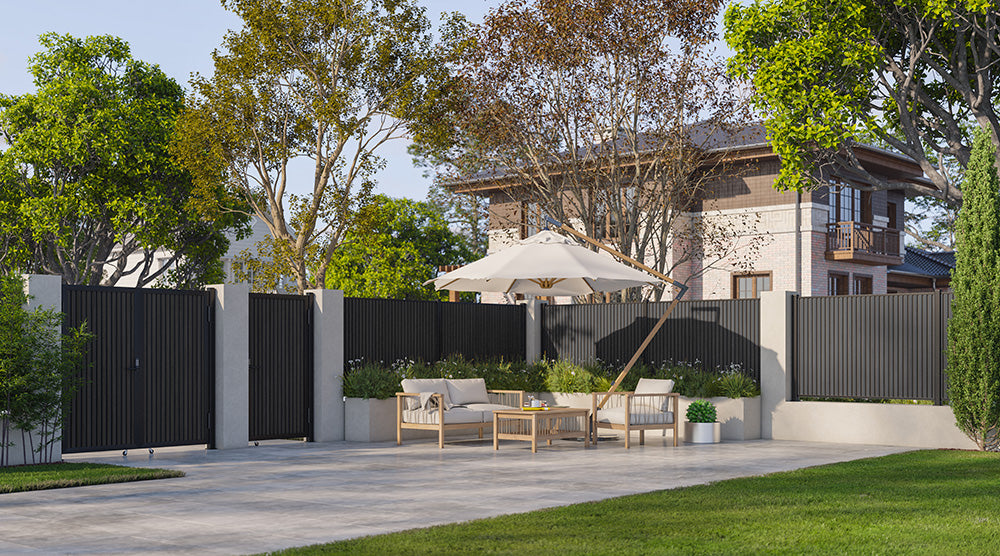

The black WPC panels paired with the black architectural metal frame create a sleek, monochromatic appearance suitable for modern homes, outdoor living areas, courtyards, side yards, privacy fencing, and light commercial applications.

Horizontal or vertical panel installation provides additional design flexibility and makes it easy to coordinate the gate with matching WPC composite fence systems.

Ideal Applications

• Side Yard Privacy Gates
• Courtyard Entrances
• Garden Entry Gates
• Front Walkway Gates
• Residential Privacy Fence Systems
• Contemporary Home Remodels
• New Construction Projects
• Outdoor Living Spaces
• Landscape & Hardscape Projects
• Light Commercial Properties
