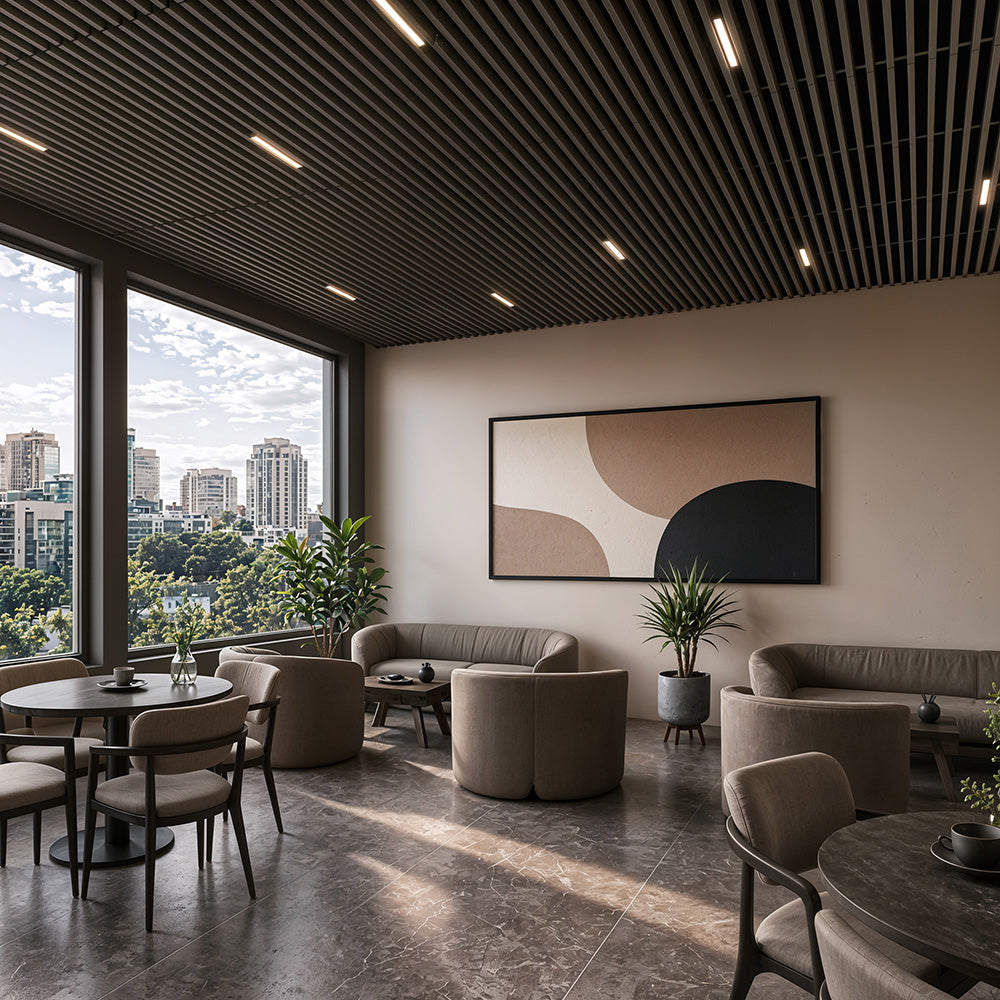

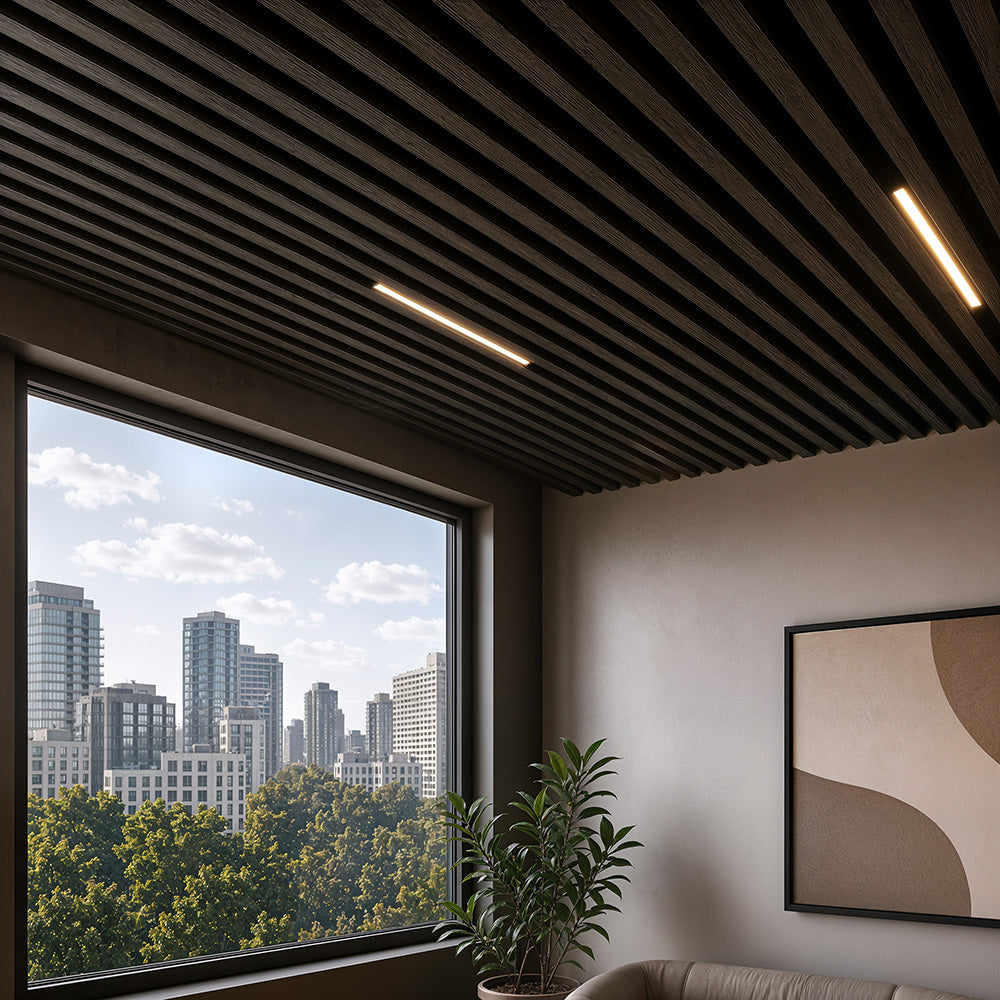

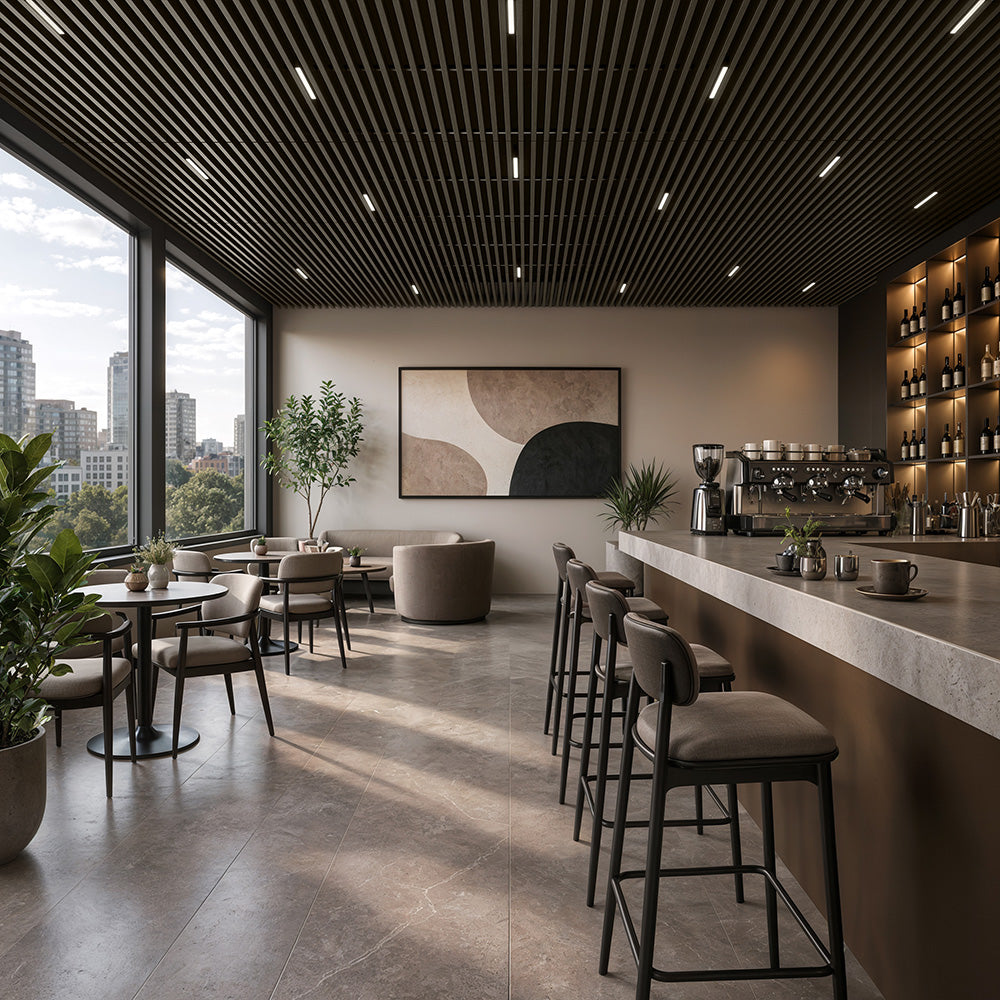

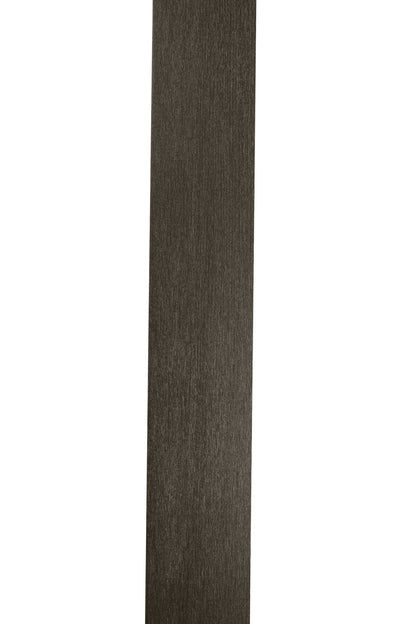

Suspended Slatted Wood Acoustic Drop Ceiling System - Black Ebony
Elevate your space with the Suspended Slatted Wood Acoustic Drop Ceiling System in Black Ebony, expertly constructed from a durable composite material that combines the beauty of wood with the strength and resilience of engineered components. Designed as a modern acoustic baffle ceiling system, these suspended wood baffles provide both architectural appeal and superior sound control for commercial and residential environments.
The precision-crafted slatted acoustic baffles help absorb and diffuse sound waves, reducing noise and echo while creating a clean, contemporary ceiling design. The Black Ebony finish delivers a bold, sophisticated appearance that complements modern interiors, making it an excellent choice for offices, conference rooms, restaurants, retail spaces, educational facilities, hospitality projects, and contemporary living areas.
Key Features
Acoustic Wood Baffle System:
Designed to control sound reflection and reduce reverberation, these suspended acoustic baffles improve speech clarity and overall acoustic comfort while adding a sophisticated linear ceiling design.
Durable Composite Construction:
Manufactured from high-quality composite materials that provide exceptional durability, dimensional stability, and long-term performance.

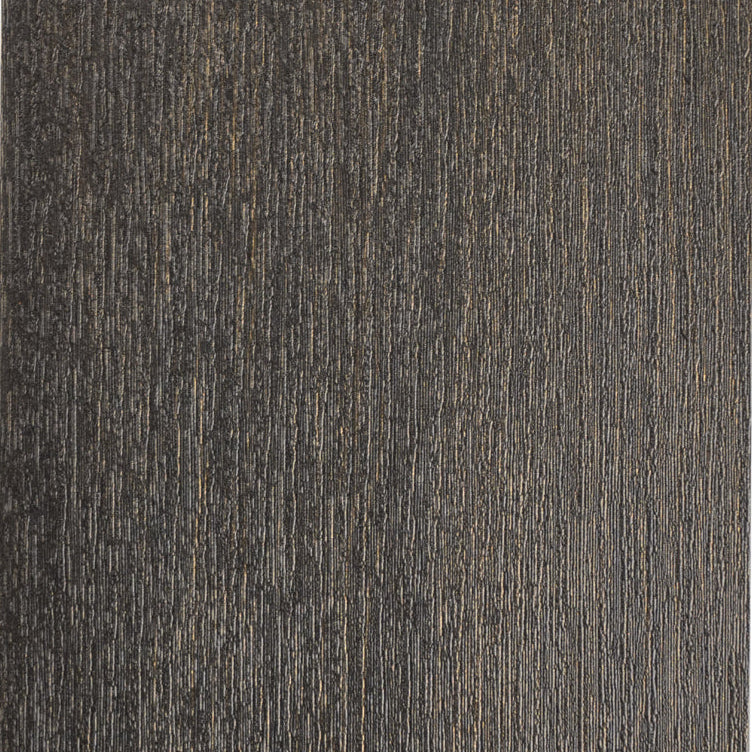

Black Ebony Finish:
A rich, contemporary wood-inspired finish that delivers the appearance of premium dark wood while offering enhanced durability and consistency.
Enhanced Acoustic Performance:
The suspended slatted baffle design helps absorb unwanted noise and echoes, creating a more comfortable and productive environment.
Sustainable and Resilient:
Constructed from environmentally conscious materials engineered to withstand daily wear and tear in commercial and residential applications.
Modular Installation System:
Designed for efficient installation and customization, allowing architects, designers, and contractors flexibility in ceiling layouts.
Versatile Applications:
Ideal for offices, conference rooms, lobbies, schools, libraries, restaurants, hospitality spaces, retail environments, and residential interiors.
Architectural Acoustic Ceiling Solution
Achieve the perfect balance of architectural design and acoustic performance with the Suspended Slatted Wood Acoustic Drop Ceiling System in Black Ebony. Featuring suspended wood baffles constructed from durable composite materials, this acoustic ceiling system delivers lasting beauty, improved sound control, and a modern linear aesthetic suitable for a wide variety of commercial and residential applications.
Each Box Contains

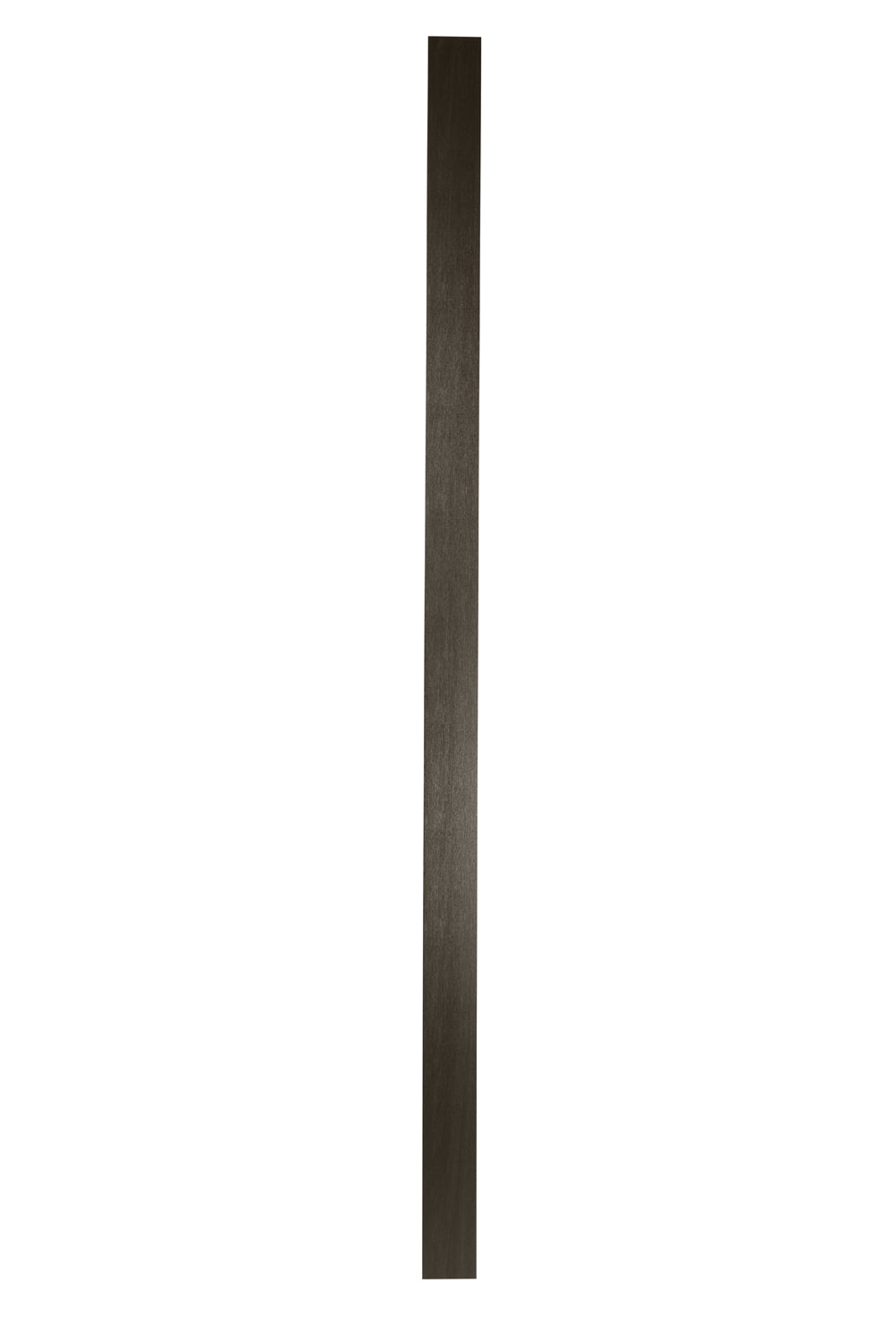

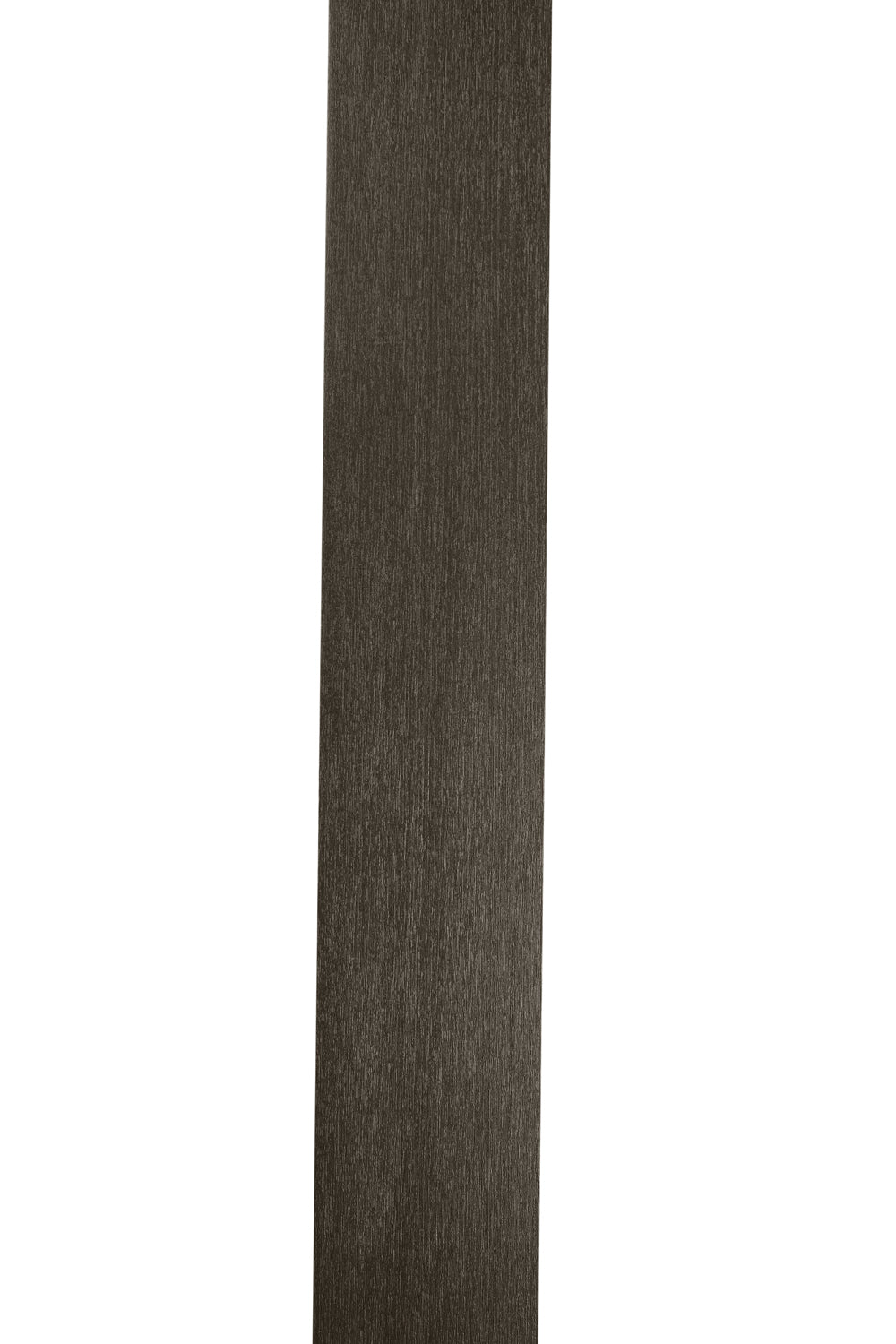

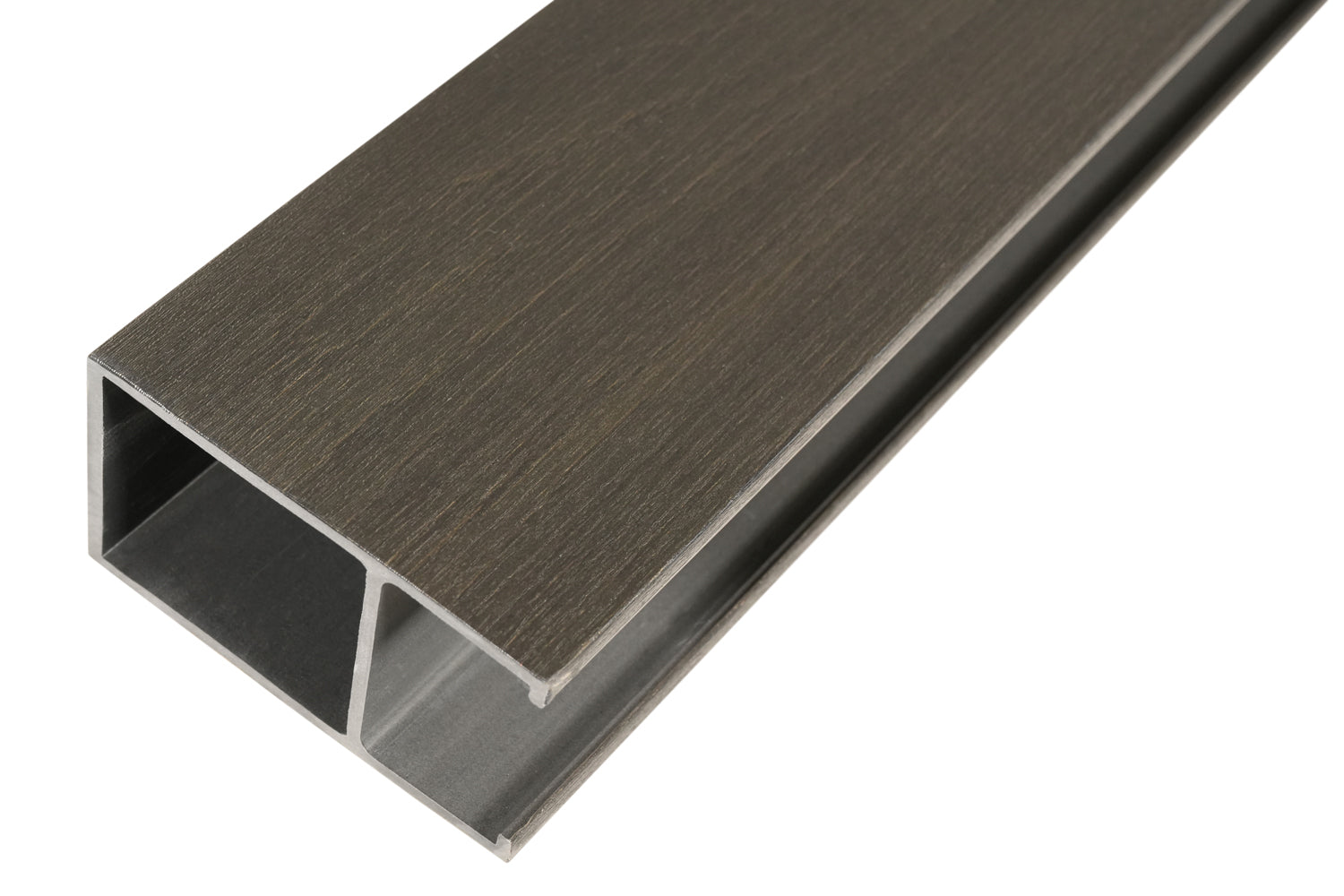

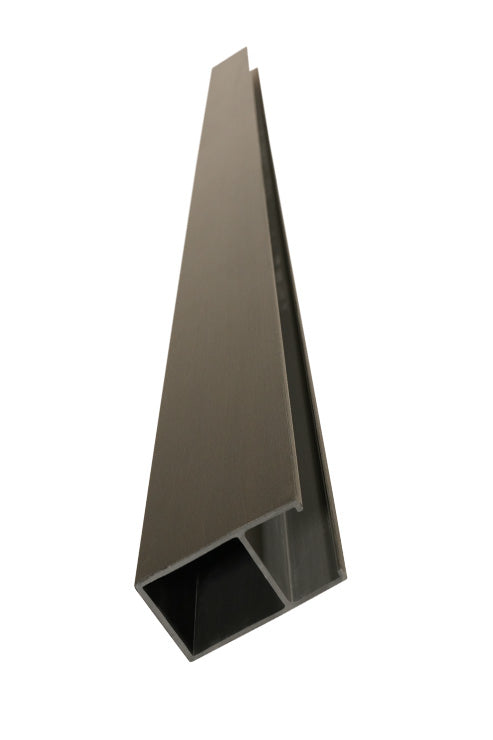

- 4 - 78.7" Long x 2" Wide x 3.54" Deep Acoustic Wood Baffles
Hardware kits are supplied separately at a ratio of 1 Hardware Kit per 5 Boxes.
Each Hardware Kit Includes:
- 4 - 80-1/4" Long Threaded Suspension Rods
- 2 - 80-1/4" Long Metal Clip-On Joists with 4" On-Center Spacing
- Complete mounting hardware for attaching rods to the ceiling and joists
Each hardware kit supports up to 20 acoustic baffles (equivalent to 5 boxes).
Product Specifications - Suspended Slatted Wood Acoustic Drop Ceiling System - Black Ebony
| Description | Value |
|---|---|
| Color | Black Ebony |
| Finish | Black Ebony |
| Box Contains | 4 Planks, (1 hardware kit per 5 boxes) 80-1/4" Long Threaded Hanging Rods, Clip-on Metal Joist Hanger, Hardware |
| Square ft./Box | 8.8 |

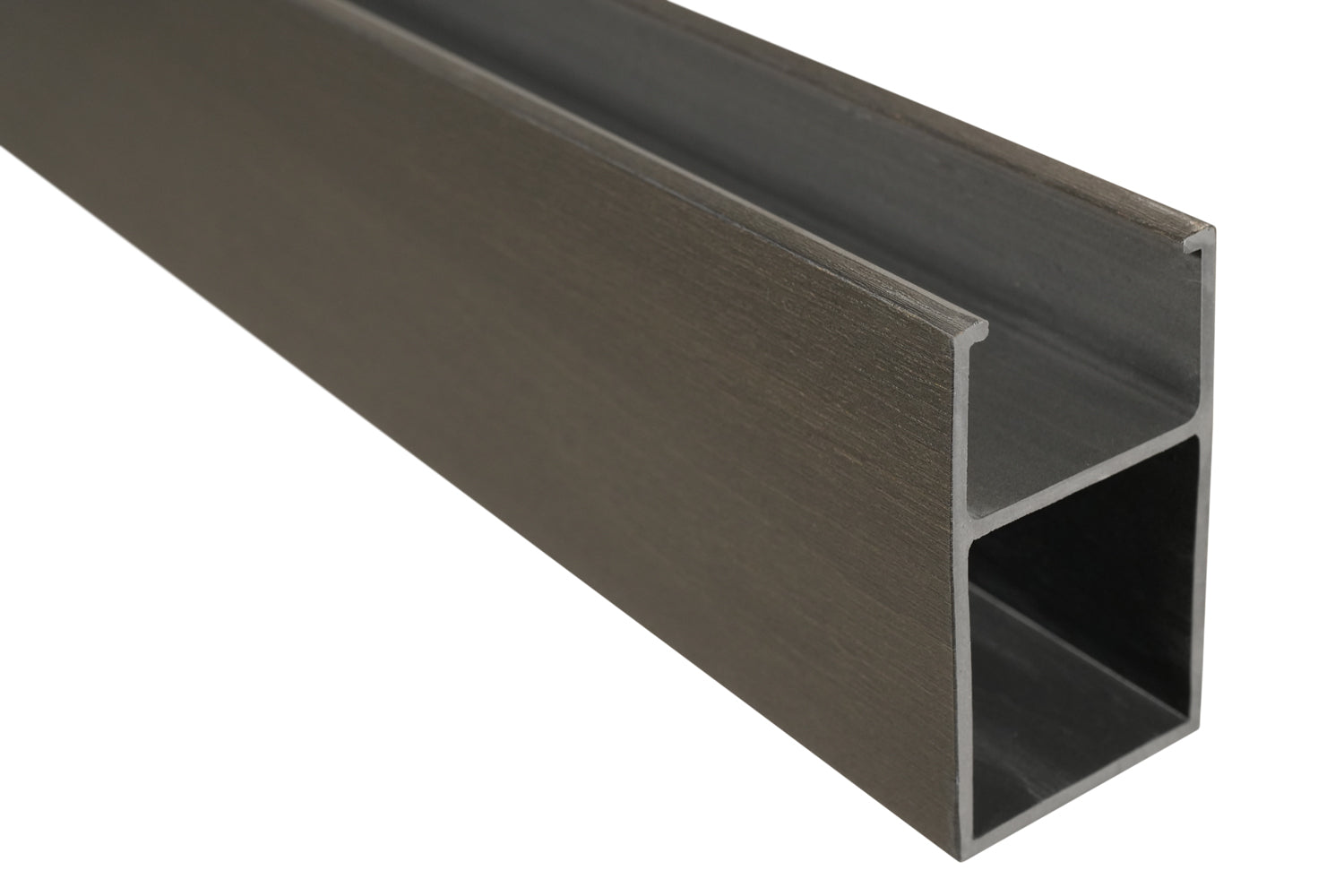

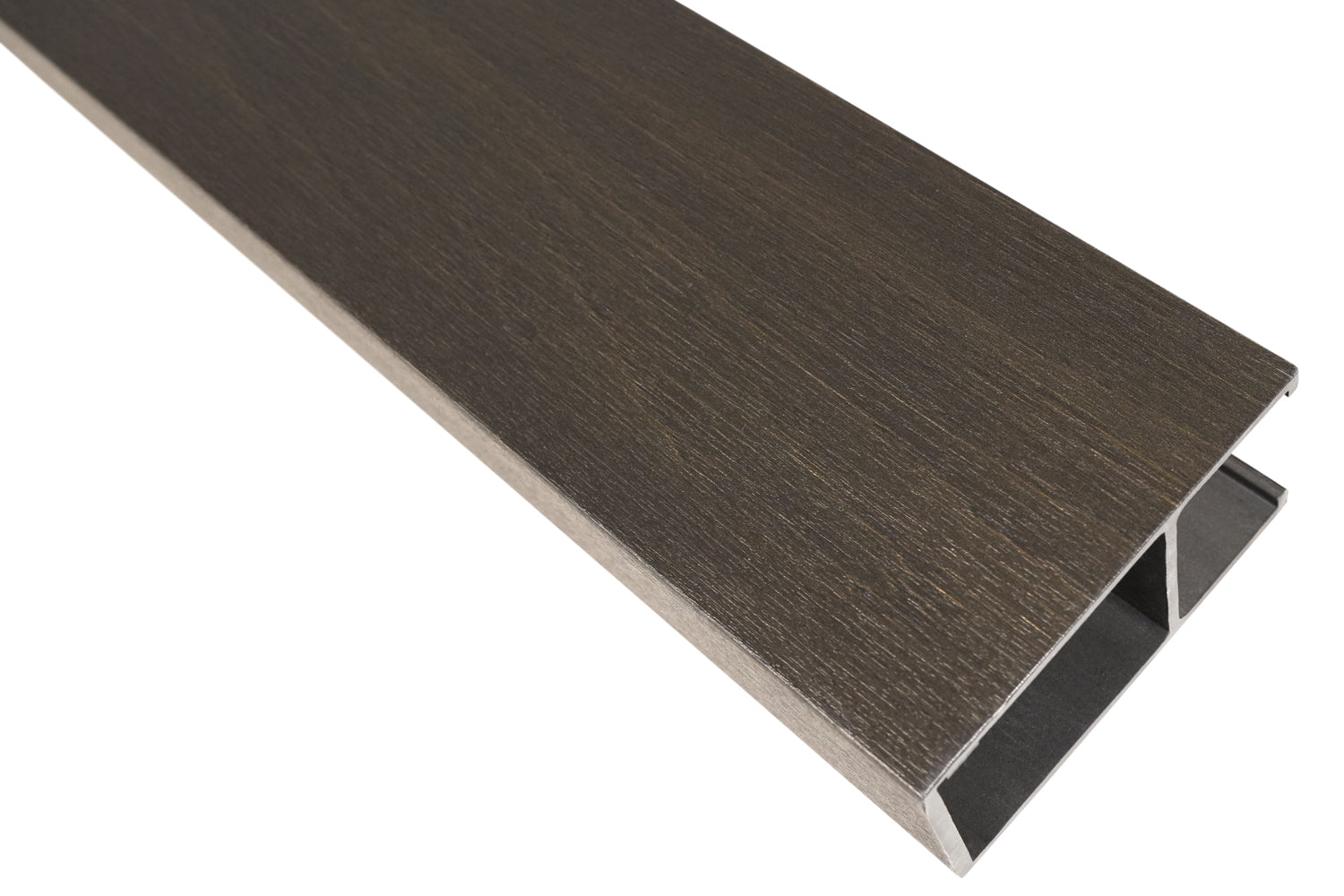

| Plank Size | 78.7" Long x 2" Wide x 3.54" Deep |
| Plank Thickness | |
| Slats/Plank | Acoustic Drop-Ceiling |
| Slat Size | N/A |
| Material | Wood Composite |
| Application | Interior |
| Installation Type | Suspended Rods, Click-On Joist System |
How to Install Acoustic Drop Ceiling System - Video
Product Specification Sheet
Architectural Ceiling Solutions That Reduce Noise and Elevate Design
Acoustic Drop Ceiling Wood Baffles
Transform ordinary ceilings into a striking architectural feature with our suspended acoustic wood beam and baffle systems. Designed to reduce echo and improve sound clarity, these composite wood ceiling elements deliver the warmth of natural wood while enhancing acoustic comfort in offices, restaurants, schools, retail spaces, lobbies, and modern residential interiors. Available in multiple finishes and engineered for easy installation into standard suspended ceiling systems, they provide the perfect balance of performance, durability, and contemporary design.
Reduce Echo, Improve Sound Clarity, and Enhance Interior Design
Engineered for Superior Acoustic Performance
Designed for both form and function, our suspended acoustic wood beam and baffle systems help absorb sound, reduce reverberation, and create more comfortable environments. Lightweight composite construction, integrated suspension hardware, and modern linear profiles make them an ideal solution for offices, restaurants, retail spaces, hospitality venues, educational facilities, and contemporary residential interiors.
Engineered Dimensions for Seamless Ceiling Integration
Built for Performance and Precision
Designed for commercial and residential applications, each suspended acoustic ceiling grid measures 78.7 inches in length by 80.25 inches in width and accommodates up to 20 wood beams or baffles. The system features a consistent 2-inch spacing between beams, creating a clean linear aesthetic while helping improve acoustic performance. Lightweight yet durable, the modular design simplifies installation and allows for efficient coverage across projects of virtually any size.
Frequently Asked Questions
Q: What are acoustic ceiling beams and baffles?
A: Acoustic ceiling beams and baffles are suspended architectural ceiling elements designed to improve sound quality by reducing echo and reverberation while adding visual depth and a modern linear aesthetic to interior spaces.
Q: Where can acoustic wood beam ceilings be installed?
A: These systems are commonly installed in offices, restaurants, retail stores, hospitality venues, educational facilities, healthcare environments, airports, lobbies, and residential spaces where both acoustics and design are important.
Q: What are the dimensions of each ceiling grid?
A: Each suspended ceiling grid measures 78.7 inches long by 80.25 inches wide and is designed to support up to 20 acoustic beams or baffles.
Q: How many beams does each grid hold?
A: Each grid accommodates 20 beams or baffles with a consistent 2-inch spacing between each beam, creating a clean and uniform architectural appearance.
Q: What is included with each box?
A: Each box contains 4 acoustic wood beams/baffles and covers approximately 8.8 square feet of ceiling area.
Q: What is included in the hardware kit?
A: One hardware kit is required for every 5 boxes purchased. Each hardware kit includes:
80-1/4" threaded hanging rods
Clip-on metal joist hangers
Suspension hardware
Components required to support and suspend the ceiling grid system
Q: How many hardware kits do I need?
A: One hardware kit is required for every 5 boxes of acoustic beams/baffles.
Examples:
5 boxes = 1 hardware kit
10 boxes = 2 hardware kits
15 boxes = 3 hardware kits
20 boxes = 4 hardware kits
Q: Are the beams made from real wood?
A: The beams are manufactured from durable composite materials that provide the appearance of natural wood while offering enhanced durability, stability, and low maintenance requirements.
Q: Do these ceiling systems help reduce noise?
A: Yes. The suspended beam design helps reduce sound reflections and improve acoustic comfort by minimizing echo and reverberation in open spaces.
Q: Can the beams be installed in existing suspended ceiling systems?
A: Yes. The system is designed for suspended ceiling applications and can be integrated into new construction projects or retrofit installations depending on site conditions.
Q: Are the beams lightweight?
A: Yes. The composite construction provides a lightweight solution that simplifies handling and installation while maintaining structural integrity and long-term performance.
Q: Can the beams or baffles be removed after installation?
A: Yes. Individual beams or baffles can be removed if access is needed above the ceiling for maintenance, lighting, HVAC, electrical work, or other building systems. To prevent damage, do not pull or yank the beams downward. Instead, gently spread the sides of the beam apart to release the retaining clips and carefully remove the beam from the suspension system. Improper removal may damage the clips or beam profile. Always use care when removing and reinstalling components.
Q: Can lighting, sprinklers, and HVAC systems be incorporated into the ceiling design?
A: Yes. In most applications, lighting fixtures, fire sprinklers, speakers, security devices, and HVAC components can be integrated between or around the suspended beams. Always consult local building codes and project professionals for specific requirements.
Q: Are the beams suitable for commercial projects?
A: Absolutely. Their modern appearance, acoustic benefits, and modular installation make them an excellent choice for offices, conference rooms, restaurants, hotels, retail stores, educational facilities, healthcare environments, and other commercial spaces.
Q: Do the beams require ongoing maintenance?
A: Very little maintenance is required. Periodic dusting or cleaning with a soft cloth is typically sufficient to keep the ceiling system looking its best.
Q: What are the primary benefits of acoustic wood beam ceilings?
A: Acoustic wood beam ceilings combine architectural aesthetics with functional acoustic performance. Benefits include reduced reverberation, improved speech clarity, enhanced visual appeal, lightweight installation, modular design, and a clean linear appearance suitable for both commercial and residential environments.
Q: Can I install the system myself?
A: Many contractors, facility managers, and experienced DIY installers can install the system using standard tools. However, for large commercial projects or ceilings with integrated lighting, sprinklers, or HVAC systems, professional installation is recommended.
Q: How do I calculate how many boxes I need?
A: Divide the total ceiling area by the coverage per box (8.8 sq. ft.) to estimate the number of boxes required. For most projects, we recommend ordering a small amount of extra material to account for cuts, layout adjustments, and future replacements.
Q: Is the system suitable for open-ceiling commercial spaces?
A: Yes. The suspended beam design is especially popular in open-ceiling environments where architects and designers want to improve acoustics while maintaining a modern, exposed-ceiling aesthetic.
